Product Description

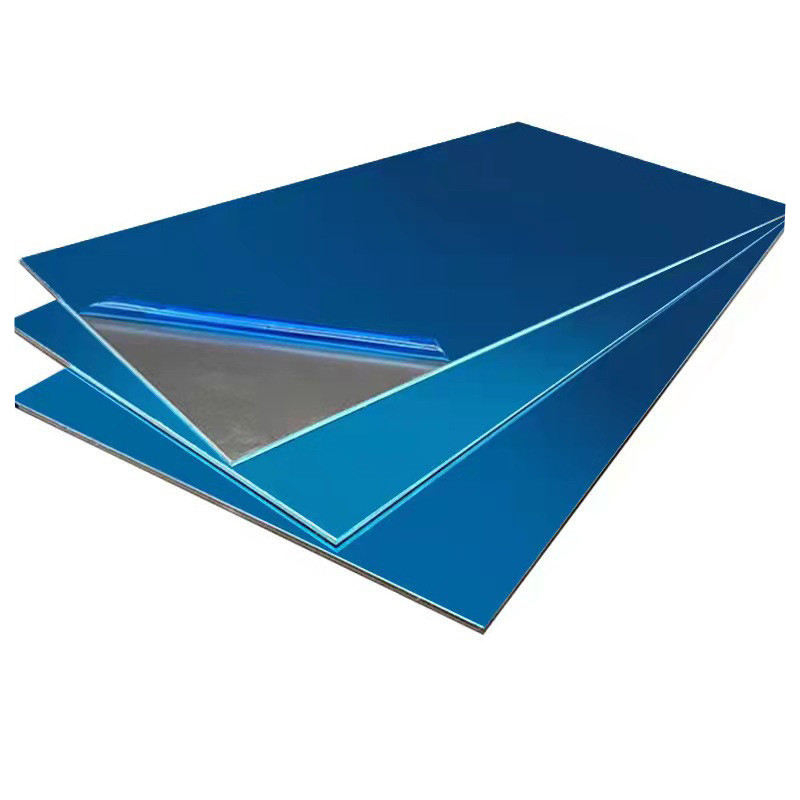

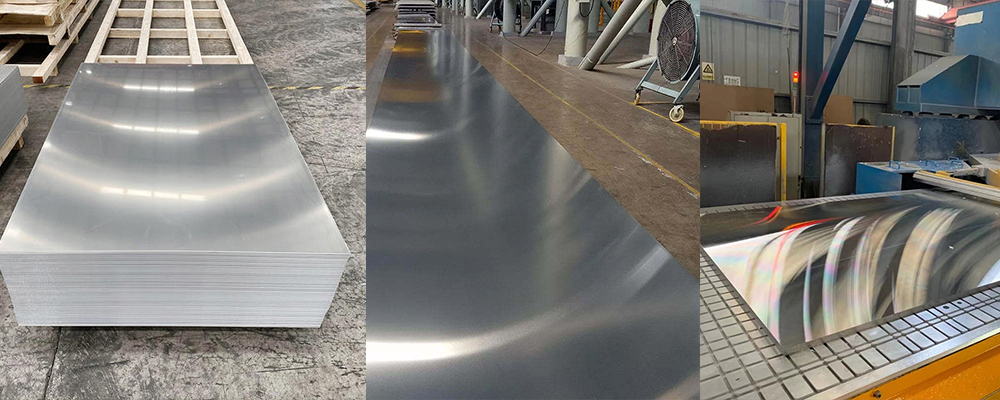

The 1100 aluminum sheet (or plate) is a commercially pure aluminum alloy containing a minimum of 99.0% aluminum. Renowned for its excellent corrosion resistance, superb formability, and high electrical and thermal conductivity, it is one of the most widely used non-heat-treatable aluminum grades.
Because of its softness and ductility, 1100 aluminum can be easily formed through deep drawing, spinning, stamping, and bending processes. It cannot be strengthened by heat treatment; instead, its mechanical properties are improved through cold working.
The alloy meets international standards such as ASTM B209, EN 485-2, and GB/T 3880, ensuring consistent performance and dimensional accuracy for industrial, architectural, and decorative applications.
| Item | Description |
|---|---|
| Alloy | 1100 |
| Temper | O, H12, H14, H16, H18, H22, H24 |
| Equivalent Standards | ASTM B209, EN AW-1100, JIS H4000 1100, GB/T 3880 1100 |
| Thickness | 0.2 mm – 3.2 mm (0.008″ – 0.125″) |
| Width | 600 mm – 2600 mm |
| Length | 400 mm – 1600 mm |
| Surface Treatments | Anodized, Color Coated, Brushed |
| Standards | ASTM B209, QQ-A-250/1, EN 485-2, EN 573-3, GB/T 3880 |
| Payment Methods | T/T, L/C, PayPal |
| Packaging | Moisture-proof film + pallet packaging + reinforced outer cartons |
| Applications | Chemical equipment, food processing machinery, electrical conductors, building decoration, deep-drawn parts, furniture panels, nameplates, heat sinks, packaging materials, and more |
| Temper | Thickness (in) | Width × Length (in) |
|---|---|---|
| O | 0.020 | 12 × 24 |
| O | 0.032 | 12 × 24 |
| O | 0.040 | 12 × 24 |
| O | 0.050 | 12 × 24 |
| O | 0.063 | 12 × 24 |
| O | 0.080 | 12 × 24 |
| O | 0.090 | 12 × 24 |
| O | 0.125 | 12 × 24 |
| H14 | 0.032 | 12 × 12 |
| H14 | 0.032 | 12 × 24 |
| H14 | 0.063 | 36 × 96 |
| H14 | 0.080 | 36 × 120 |
| H14 | 0.125 | 36 × 144 |
| Property | Condition / Temper | Typical Value | Unit |
|---|---|---|---|
| Tensile Strength | O (Annealed) | 13,000 – 19,000 | psi |
| H14 (Half-Hard) | 21,000 – 27,000 | psi | |
| H18 (Hard) | 28,000 – 34,000 | psi | |
| Yield Strength (0.2% offset) | O | 4,000 – 7,000 | psi |
| H14 | 14,000 – 18,000 | psi | |
| H18 | 22,000 – 28,000 | psi | |
| Elongation at Break | O | 35 – 45 | % |
| H14 | 10 – 25 | % | |
| H18 | 3 – 10 | % | |
| Brinell Hardness (BHN) | O | 25 – 35 | HB |
| H14 | 45 – 60 | HB | |
| H18 | 65 – 85 | HB | |
| Density | All Tempers | 2.71 | g/cm³ |
| Electrical Conductivity | O | ~59 | % IACS |
| Thermal Conductivity | O | ~222 | W/m·K |
⚡ High Electrical Conductivity – Up to 59% IACS, making it suitable for electrical conductors and components.
Superior Corrosion Resistance – Performs well in chemical, marine, and food processing environments.
Excellent Weldability – Compatible with all conventional welding techniques.
❄️ Non-Heat-Treatable – Strength and hardness are enhanced through cold working, not heat treatment.
Outstanding Formability – Ideal for deep drawing, spinning, and complex forming applications.
1100 aluminum sheet is widely used in applications that require high corrosion resistance, excellent formability, and good electrical and thermal conductivity.
It shares similar characteristics with 1050 aluminum but offers slightly higher strength and better mechanical properties.
⚙ Electrical Components – Busbars, conductors, and electrical connectors due to its high conductivity.
Chemical & Food Processing Equipment – Tanks, containers, and process machinery thanks to its corrosion resistance.
Architectural Applications – Decorative panels, roofing, siding, and facade materials requiring durability and a clean finish.
Packaging Materials – Foil, trays, and industrial packaging with excellent formability.
Heat Exchangers & Radiators – Excellent thermal conductivity for efficient heat transfer.
Deep Drawing & Forming Products – Used in cookware, appliances, and shaped industrial components.
Reflective Surfaces – Ideal for lighting reflectors and decorative aluminum panels.
